Anti Drone System

The Vista Anti-Drone System is an AI-powered advanced defence solution designed to safeguard critical areas from unauthorized drone intrusions. By combining cutting-edge RF and Electro-Optical technologies, it delivers seamless detection, precise tracking, and effective neutralization of drone threats. Engineered for reliability and versatility, the system offers robust protection tailored to diverse operational environments and mission-critical scenarios. With a continuously updated library of commercial and non- commercial drone models, RC systems, and telemetry devices, it ensures reliable protection for critical infrastructures, public spaces, and high-security zones.

Salient Features Detection Technologies:

RF Detection: A passive RF detection mechanism supporting variety of wireless protocols and RF Modulation, offering early warnings and drone locations with high accuracy rates.
Electro-Optical Detection: High-resolution electro-optical sensors which supports both manual and automatic mode of operation to detect and classify drones in RF free environment, such as autonomous drones.

Neutralization Technologies

RF Jamming: Smart Jamming capabilities covering all operating bands with support for long range, omni- directional and directional antenna.
GNSS Spoofing: Generates deceptive signals to take control of a drone and navigate it away from sensitive zones.

Advanced Capabilities

User-Friendly Interface: For live tracking, alerts and control.
Multi-Target Detection: Simultaneously monitors and neutralizes multiple drones.
Customizable Frequency Bands: Allows operation in user-defined frequency ranges to comply with local regulations.
Wide Coverage: Long-range detection (up to 7 km) and neutralization (up to 3 km) ensure comprehensive

	Technical Specification
	RF Detection
Detection Methodology	Passive RF Detection
Detection Range	Up to 5km (LOS)
Frequency Range	400 MHz – 6 GHz
Dynamic Range	70dB
	Electro Optical Detection
Optical Sensors	High Resolution TV, MWIR/SWIR
Detection Range	Up to 5km (LOS)
Target Classification	AI-based drone identification and threat assessment
Gimbal Support	Pan-tilt-zoom with manual and auto-tracking
Tracking Accuracy	<0.5mRad
Azimuth Coverage	± 360 degrees
Elevation Coverage	-30 degrees to +85 degrees.
	RF Jamming & Spoofing
Neutralization Range	Up to 3km
Defence Angle	Omnidirectional/Directional
Frequency Bands	Consumer, Commercial ISM, GNSS, INS
	General Parameters
Control Interface	Intuitive GUI, Remote Web Access
System Compatibility	Integrates with C2 and radar systems

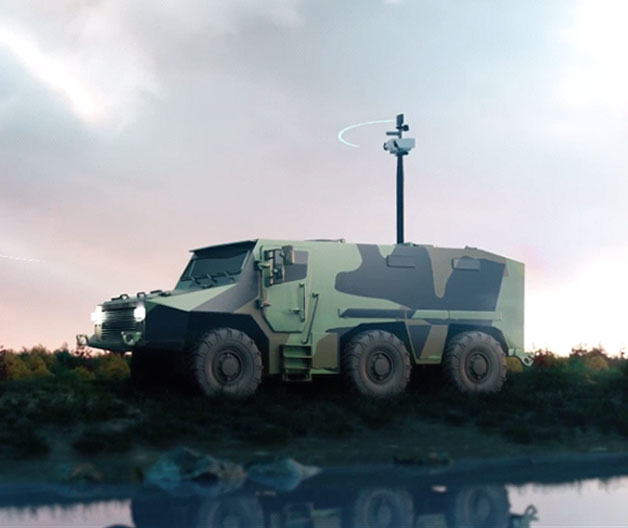

Mounting Options	Portable, Vehicle, or Fixed Installations
System Compatibility	Integrates with C2 and radar systems
